VN1DF-2N66E

Dome Camera: Seamless Integration, Complete Coverage

SPECIAL FEATURES

- 2 Megapixels
- 1/2.8" Sony STARVIS CMOS Sensor
- Progressive Scan
- 1945 x 1109 (2.16 Megapixel)
- Full HD 1080P @ 30 fps
- H.265, H.264 and MJPEG

- IP Network
- Web server built in
- 3DNR / DOL True WDR
- ONVIF Compatibility
- PoE Support
- Power Source : DC 12V & PoE

PHYSICAL

- 3.6mm Fixed Lens
- Plastic Housing
- White Color
- 123.4mm (W) x 100mm (H)

RESOURCES

❖ NOTE

Easy Installation with any NVRs
Option: 6mm / 8mm / 12mm Fixed Lens

CAMERA

Image Sensor

1/2.8” Sony CMOS Sensor, IMX307

Total Pixels

1945 (H) x 1109 (V) = 2.16 MP

Active Pixels

1920 (H) x 1080 (V) = 2.07 MP

Scanning Mode

Progressive Scan

Minimum Illumination

Color: 0.05 Lux | B&W: 0.005 Lux

S/N Ratio

More than 50dB (AGC off)

LENS & IR LED

Lens Type

Fixed Lens

Focal Length

3.6mm

Aperture Ratio

F2.0

IR LED

CAMERA FUNCTIONS

Wide Dynamic Range

DOL HDR (Digital Over Lab High Dynamic Range)

Day and Night Mode

Automatic, Day, Night

Noise Reduction

3D-NR

Auto Exposure Mode

Automatic, Manual

Shutter Speed Control

1/30,000 – 1/30 sec (Automatic / Manual)

Gain Control

0dB – 69dB (Automatic / Manual)

Auto White Balance

Auto, Outdoor, Shade, Clear sky, Fluorescent light, Light Bulb, Manual

Digital Zoom

Up to 8x

OSD

On / Off

BLC

On / Off

HLC

On / Off

Image Effect

Mirror, Flip

Privacy Mask

Up to 8 Areas Selection

Tamper

On / Off

Video Motion Detection

Up to 4 Areas Selection

Lens Distortion Compensation

On / Off

Video Compression

H.264 / H.265 / MJPEG

Video Resolution

1920 x 1080, 1280 x 960, 1280 x 720, 640 x 480, 640 x 360, 320 x 240

Video Frame Rate

1920 x 1080 @ up to 30 fps

Video Streaming

Simultaneously H.265, H.264, MJPEG | Independent Frame Rate and Bandwidth Control | VBR / CBR Mode

Audio Streaming

Two way (G.711)

NETWORK

FTP Uploading

MJPEG Still Image

Event In

Onboot / Trigger / Network Loss / Tampering / Motion

Event Out Notification

Email, FTP

Administrator, Operator, Guest

Event Buffering

FTP: Pre / Post Event Time: 0 – 30 sec, FPS: 1 – 2 fps

Manual Trigger

Still Image Capture

Security

Multi User Authority, IP Filtering, HTTPS

Network Time Sync

Synchronize Computer / NTP Server, Manual

Software Reset

Restart, Reset, Factory Default

Auto Recovery

Backup, Restore

Remote Upgrade

Using Web Browser

Protocols

TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, TRCP, DHCP, ARP, Zeroconf, Bonjour, SNMP

Client Software

Built in Web, ONVIF Compatible 3rd Party VMS

Max User Connection

10 Users

Ethernet Tx / Rx

RJ-45 (10/100 Base-T)

GENERAL

Power Source

DC 12V (+/-) 10%, PoE IEEE802.3af, Class3

Power Consumption

210mA

Operating Temperature

-10℃ – +50℃ / 0% – 90% RH

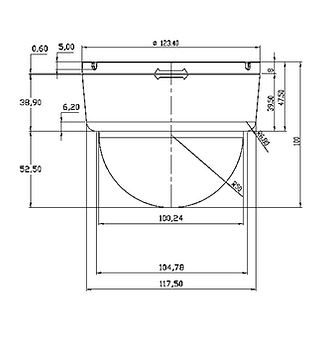

Dimensions

Ø123.4mm (W) x 100mm (H)

This INDOOR DOME camera is a basic 2 megapixel camera.

The size of this transparent Dome is Ø100mm.

This housing not only features an aesthetically refined design but also ensures a non-reflective surface, minimizing glare and unwanted light reflections. This enhances image clarity and prevents interference that could affect camera performance, making it ideal for both indoor and outdoor surveillance applications.

It is equipped with NDAA SoC and Sony IMX307 sensors.

With an 3.6mm fixed lens, it offers optimal convenience for easy installation.

6mm, 8mm, and 12mm lenses are optional.

VN1DF-2N66E

IP INDOOR DOME Camera

2 MP

HD Resolution

3.6mm

Motorized Varifocal Lens

Ø123.4mm

Housing
