VNMB-2N66E
Miniature Camera: Compact Size, Uncompromised Security
SPECIAL FEATURES
- 2 Megapixels
- 1/2.8" Sony STARVIS CMOS Sensor
- Progressive Scan
- 1945 x 1109 (2.16 Megapixel)
- Full HD 1080P @ 30 fps
- H.265, H.264 and MJPEG
- IP Network
- Web server built in
- 3DNR / DOL True WDR
- ONVIF Compatibility
- PoE Support
- Power Source : DC 12V & PoE
PHYSICAL
- 3.6mm Fixed Lens
- Aluminium Die Casting
- Black Color
- 36mm x 36mm Mini Housing
- Provide with Bracket
RESOURCES
Specification
Brochure
OVERVIEW
This Mini camera is 2 megapixel camera. This miniaturized housing has dimensions of 36mm x 36mm, and the board size is 32mm x 32mm. The housing is made of durable aluminum for enhanced sturdiness. Since the lens is exposed, it is designed for secure and stable lens mounting. Despite its small size, it includes all essential features without compromise. It is equipped with an NDAA/TAA compliant SoC and Sony IMX307 sensors. The lens is a 3.6mm fixed BOARD lens.
-
2 MP
-

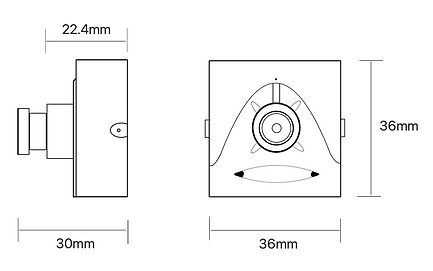

36mm (W) x 36mm (H)
-
Aluminium Die Casting Case
-
3.6mm Fixed Lens
-
1/2.8" Sony STARVIS CMOS Sensor
-
Progressive Scan (16: 9)
-
Total Pixels : 1945 x 1109 (2.16 MP)
-
Effective Pixels : 1920 x 1080 (2.07 MP)
-
Full HD 1080p / HD720p @ 30 fps
-
IP NETWORK - Video Output
-
2DNR / 3DNR
-
DOL HDR (Digital Over Lab High Dynamic Range)
-
WDR / DWDR
-
DC 12V & PoE - Power Source
-
Audio Input / Output (Optional)
-
Supports ONVIF
❖ NOTE
-
Easy Installation with any NVRs
-
Option: Various Fixed Lenses
