VN1V-2N66E
Vandal Dome: Maximum Durability, Ultimate Protection
SPECIAL FEATURES
- 2 Megapixels
- 1/2.8" Sony STARVIS CMOS Sensor
- Progressive Scan
- 1945 x 1109 (2.16 Megapixel)
- Full HD 1080P @ 30 fps
- H.265, H.264 and MJPEG
- IP Network
- Web server built in
- 3DNR / DOL True WDR
- ONVIF Compatibility
- PoE Support
- Power Source : DC 12V & PoE
PHYSICAL
- 2.7–13.5mm (F1.4) Motorized Varifocal Lens
- Aluminium Die Casting Case
- White Color

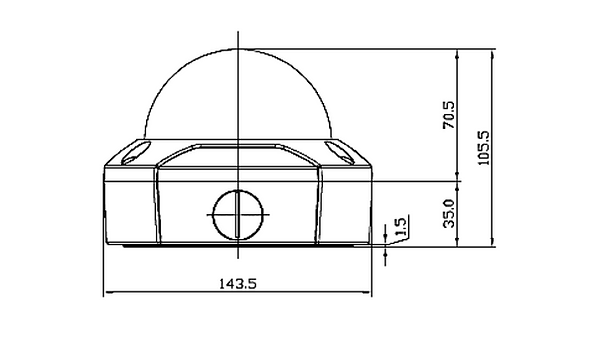

- Ø143.5mm x 105.5mm (H)
RESOURCES
Specification
Brochure
OVERVIEW
This VANDAL-PROOF DOME camera is a 2 megapixel camera. The size of this transparent Dome is Ø100mm. This housing features a refined design and a non-reflective surface, minimizing glare for clearer images. It is waterproof and vandal-proof, ensuring durability in harsh environments, making it ideal for indoor and outdoor surveillance.It is equipped with NDAA SoC and Sony IMX307 sensors. With an x5 motorized lens, it offers optimal convenience for easy installation. The exact focal length is 2.7–13.5mm.
-
2 MP
-
Ø143.5mm x 105.5mm (H)
-
Ø100mm Transparent Dome Cover
-
Aluminium Die Casting Case
-
2.7–13.5mm Motorized Varifocal Lens
-
1/2.8" Sony STARVIS CMOS Sensor
-
Progressive Scan (16: 9)
-
Total Pixels : 1945 x 1109 (2.16 MP)
-
Effective Pixels : 1920 x 1080 (2.07 MP)
-
Full HD 1080p / HD720p @ 30 fps
-
IP NETWORK - Video Output
-
2DNR / 3DNR
-
DOL HDR (Digital Over Lab High Dynamic Range)
-
WDR / DWDR
-
DC 12V & PoE - Power Source
-
Audio Input / Output (Optional)
-
Supports ONVIF
❖ NOTE
-
Easy Installation with any NVRs
-
Option: 6–22mm Motorized Varifocal Lens
VN1V-2N66E
IP VANDAL DOME Camera
2 MP
HD Resolution
2.7–13.5mm
Motorized Varifocal Lens
Ø143.5mm
Housing
